Sale!

Computer-1

14,000.0018,500.00

SKU: N/A Category:

a flat pack, sheet metal computer case with the same build-it-yourself design as our modular series. the case has a small desk footprint and is built around the mini-ITX motherboard and the sfx power supply format. it also fits a dual-slot graphics card up to 180mm. available in pure orange RAL 2004. note: computer–1 is a pc case only, computer components must be bought separately.

  • 1 mm aluminum
  • powder coated pure orange RAL 2004
  • build-it-yourself flat pack design
  • fill with the components you need (mini itx sizing)
Compare

Description

computer–1

a simple, no frills computer.

years ago, when we started, we couldn’t find a pc case for our own builds. so we made our own using a laser cutter, 6 mm high density board and spray paint. it was assembled and held together by simple wooden plugs.it worked ok for what it was designed for. Unfortunately, the handles couldn’t support

the weight of the unit when moving it around.
a couple of literal computer crashes later, we turned to a lighter and sturdier design using aluminium. we’ll always continue to iterate on the design, but here we are. it’s not a ground-breaking pc case, but we like it, and use it everyday. now we’d like to share it with you.

a small desk footprint.

computer–1 takes up minimum desk space, making more room for the projects you have at hand. while compact, it’s capable of housing a wide range of components to fit your needs, whether you are a teenager or a banker.

the lightweight aluminium, and chrome handles, make it easy to move your machine around whenever you need to. with its pure orange RAL 2004 powder coated finish, it’s a small, no frills tool for any desktop.

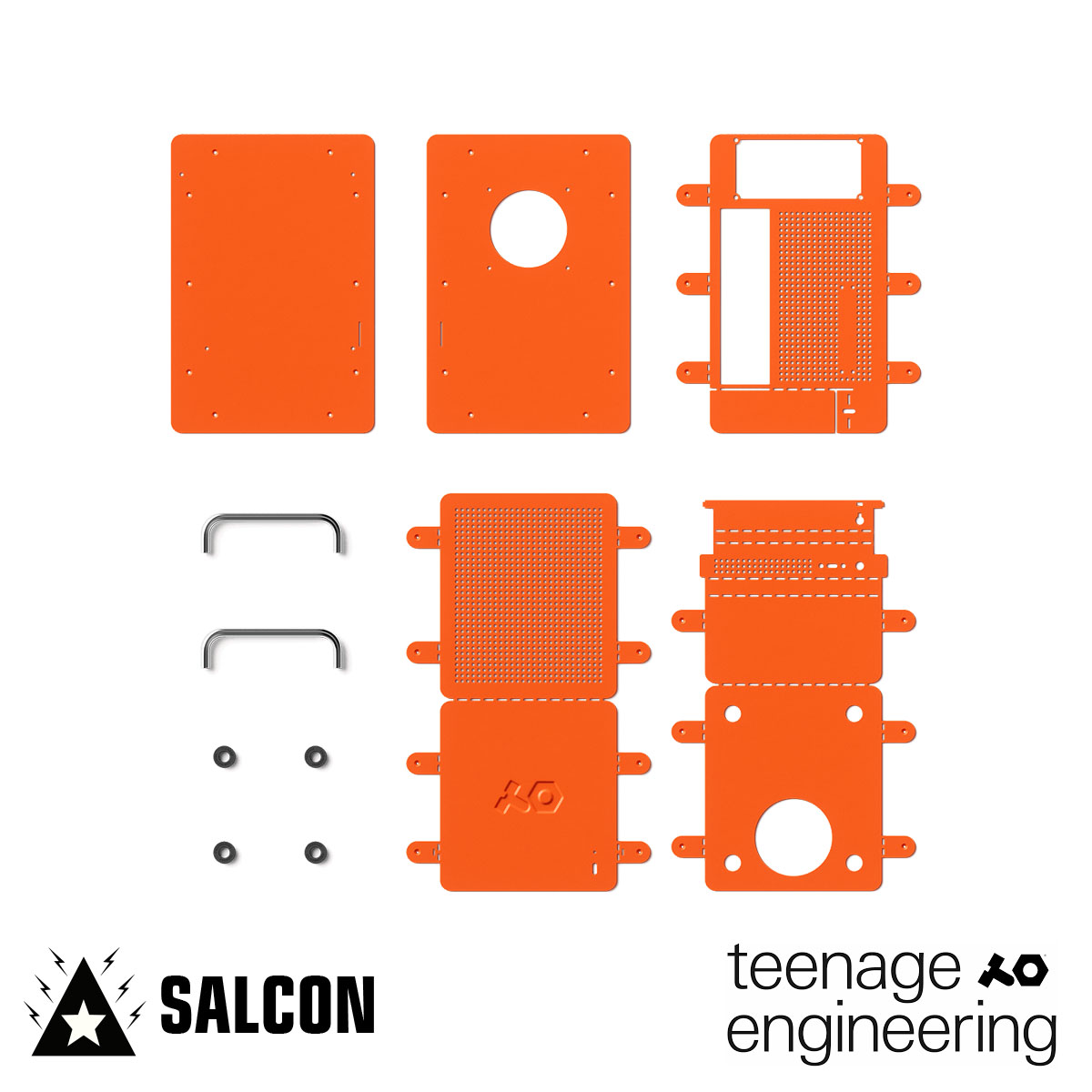

build-it-yourself

the build-it-yourself flat pack design is based on the same technique we use in our modular series. the powder coated 1 mm aluminium is flexible enough to bend into shape, and sturdy enough to keep your components secure.

each kit comes with all of the parts* required to assemble the case. inside you’ll find everything from the aluminum sheets to an illustrated build guide with instructions and bend angles. just remember: think twice, bend once!

form factor
mini-ITX
gpu dual-slot up to 180 x 130 x 40 mm
power supplysfx
cpu cooler height limit from motherboard surface 120 mm
materialpowder coated Aluminium
colorpure orange RAL 2004

outer dimensions (mm)
W 170 D 190* H 322**
*FRONT PANEL SWITCH PROTRUDES 10 MM, CABLING TYPICALLY NEEDS MINIMUM 50 MM SPACE AT THE BACK.
**285 MM WITHOUT HANDLES.


inner dimensions (mm)
W 164 D 189 H 275.5
width from motherboard to case 147 mm
approximate width from motherboard to case fan* 120 mm
*DEPENDS ON CASE FAN THICKNESS.



DISCLAIMER: ALL TEENAGE ENGINEERING PRODUCTS SHALL BE ORDERED ON A PRE-PAYMENT BASIS AND WILL BE DELIVERED IN A DURATION OF ONE MONTH.

All Teenage Engineering Products sold by Salcon Electronics shall be ordered on a pre-payment basis and will be delivered in a duration on one month minimum. A 14 day money back guarantee for all items sold directly by us. the 14 days are counted from the arrival of the item. the item has to be in an »as good as new« condition for us to accept full refund.
