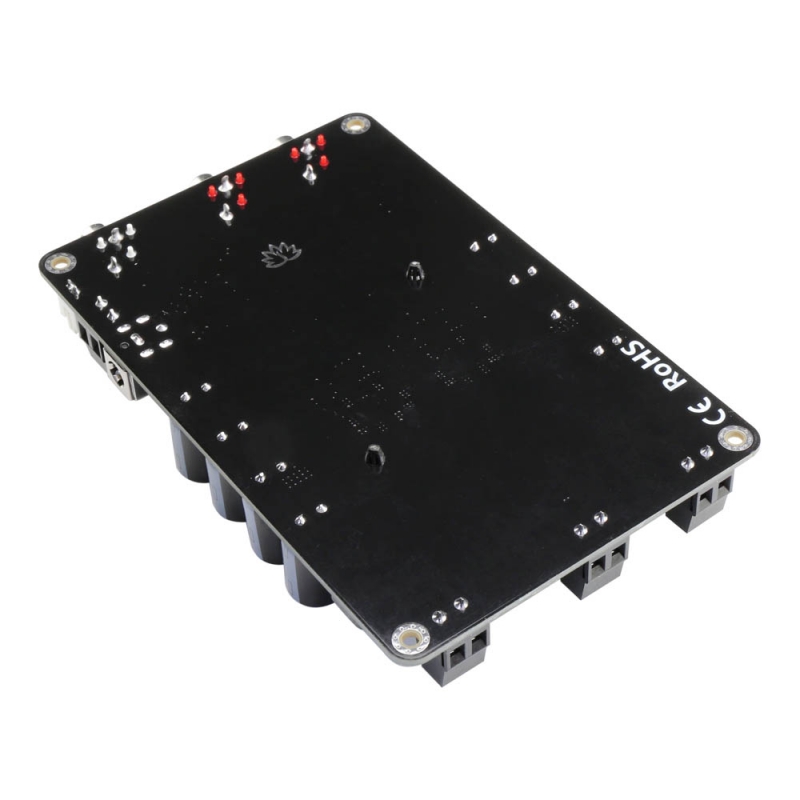

2 x 100W + 200W 3 Channels Audio Amplifier Board – TSA7600

Features:

Size: 14.8cmx9cmx2.4cm
Working voltage: DC12V-30V
Weight: 152g
Over/under voltage protection
Over current protection
Over temperature protection

Applications:

Personal computer
Background music system
Musical instrument amplifiers
Home DIY
Car audio

₹3,750.00 Excl. Tax

Incl. Tax: ₹4,425.00

Tax: ₹675.00

Categories: New Releases, Tinysine

11 People watching this product now!

16 Items sold in last 3 minutes

Features:

Size: 14.8cmx9cmx2.4cm
Working voltage: DC12V-30V
Weight: 152g
Over/under voltage protection
Over current protection
Over temperature protection

Applications:

Personal computer
Background music system
Musical instrument amplifiers
Home DIY
Car audio

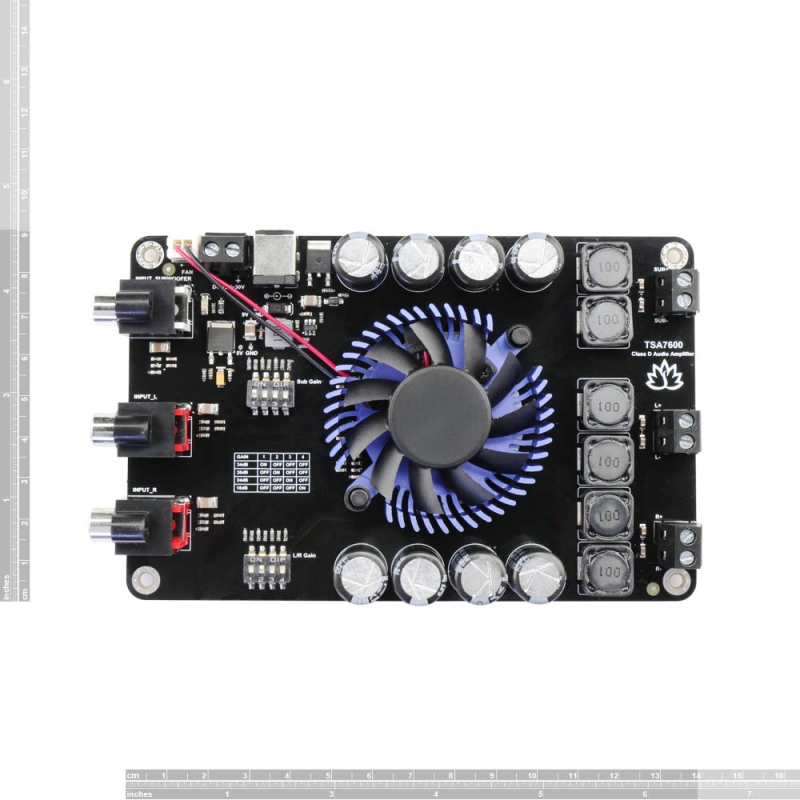

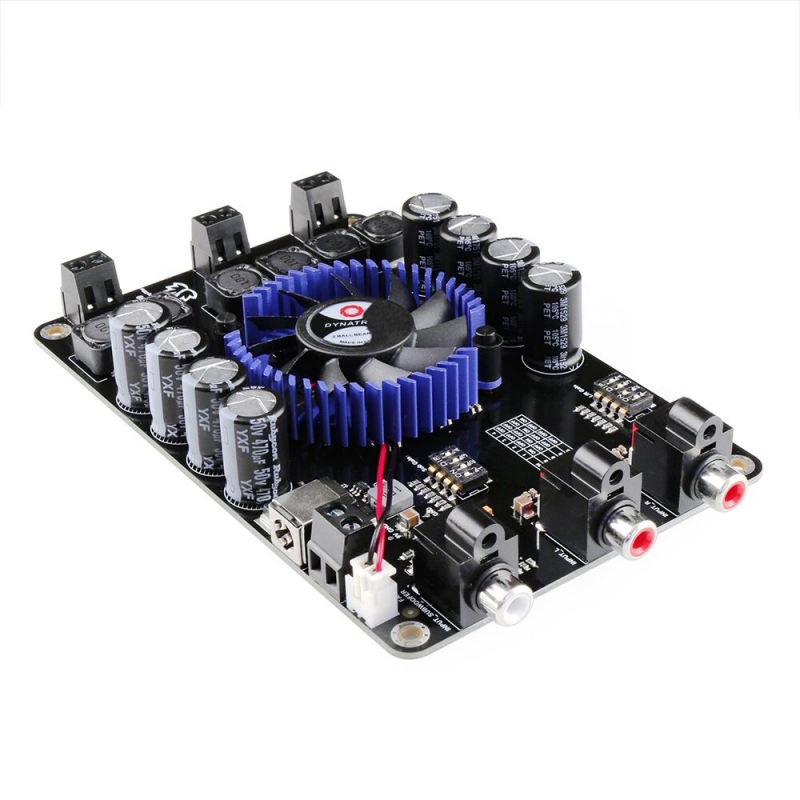

TSA7600 2x100W + 220W audio amplifier board. It has perfect class-D architecture(Based on TPA3221) and 2 channels have 100W power output and another one channel has 200W power output. All channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 4Ω or 8Ω passive speakers.

Specification:

Specifications typical @ +25℃, Powered by 24V DC, unless otherwise noted. Specifications subject to change without notice.

Parameter	Condition	Min	Typ	Max
Supply Voltage (VDC)	–	10	24	26
Power output per channel	RL= 3Ω, 10% THD+N		112W
	RL= 4Ω, 10% THD+N		105W
	RL= 3Ω, 1% THD+N		100W
	RL= 4Ω, 10% THD+N		88W
	200W channel: RL= 2Ω, 1% THD+N		208W
THD+N	1W		0.02%
SNR	A-weighted,Gain= 18 dB		108dB
DNR	A-weighted,Gain= 18 dB		109dB
Minimum Load Impedance		3Ω	4Ω
Gain		18dB	24dB	34dB
Efficiency	100W @ 4Ohm		90%
Input Impedance	18dB		48KΩ
	24dB		24KΩ
	30dB		12KΩ
	34dB		7.7KΩ
